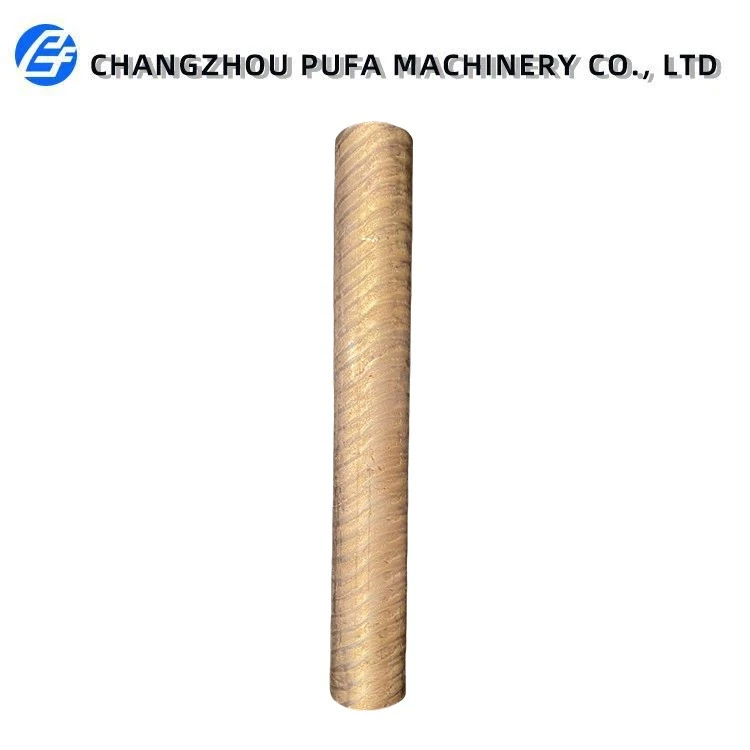

PUFA MACHINERY manufactures high-strength aluminium bronze pipes with nickel content, ALBC3. These pipes have exceptional yield strength, compressive strength, high hardness, and adequate elongation. It's a good bearing material that can be used in high impact, heavy load, and high load applications.

Grade:C95400, C95500, C95800, C63000 and so on

Wall Thickness:5-120mm

Outside Diameter:20-300mm

Certification:ISO9001:2015

Delivery Time:15 Days

				Ni(1)
78.0 min	10.0-11.5	3.0-5.0	3.5	3.0-5.5
80	11	4		4.3


Melting Point - Liquidus	1930 F	1054 C
Melting Point - Solidus	1900 F	1038 C
	0.272 lb/in3 at 68 F	7.53 gm/cm3 @ 20 C
	7.53	7.53
	122.8 ohms-cmil/ft @ 68 F	20.41 microhm-cm @ 20 C
	8 %IACS @ 68 F	0.049 MegaSiemens/cm @ 20 C
	24.2 Btu · ft/(hr · ft2·oF)at 68F	41.9 W/m · oK at 20 C
	9.0 ·10-6 per oF (68-572 F)	16.2 ·10-6 per oC (20-300 C)
	0.1 Btu/lb/oF at 68 F	419.0 J/kg · oK at 293 K
	16000 ksi	110000 MPa
	1.2	1.2
	1.32	1.32
	0.32	0.32
